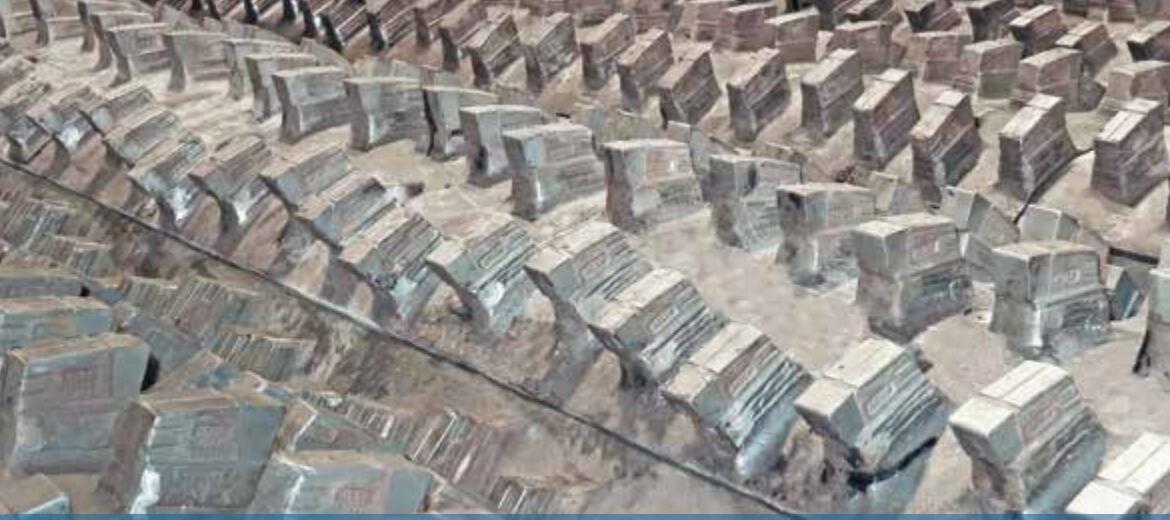

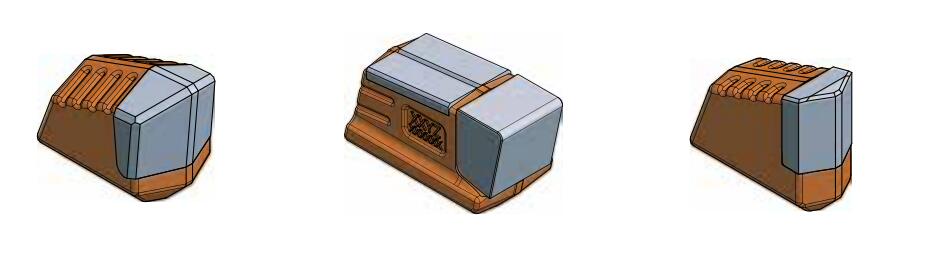

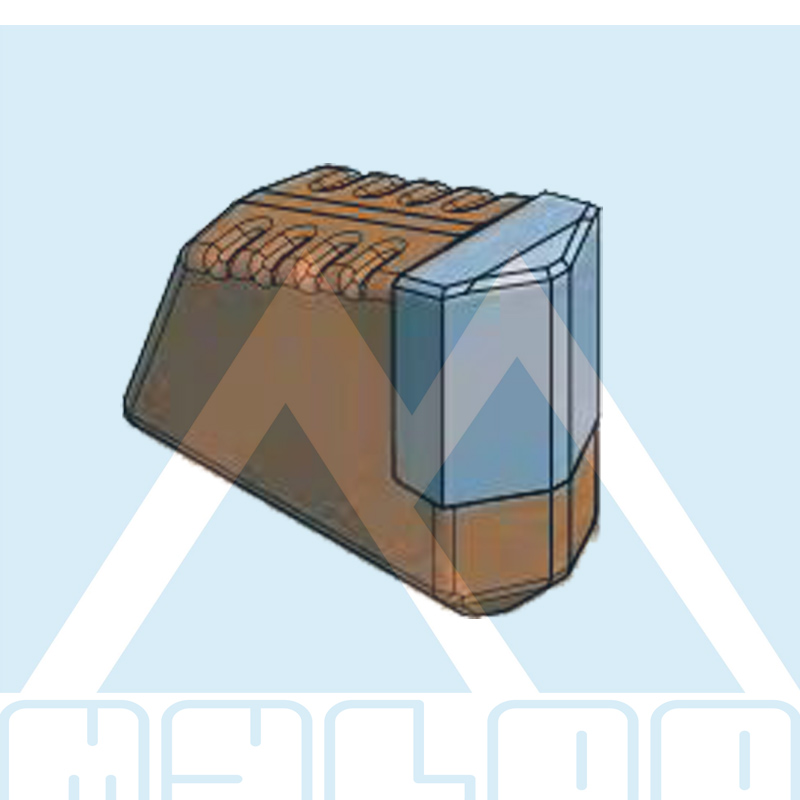

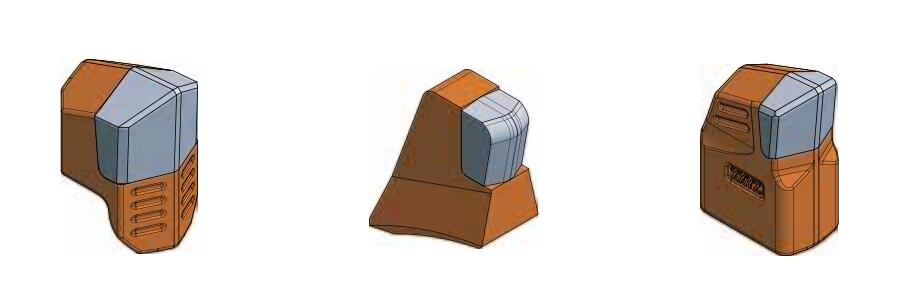

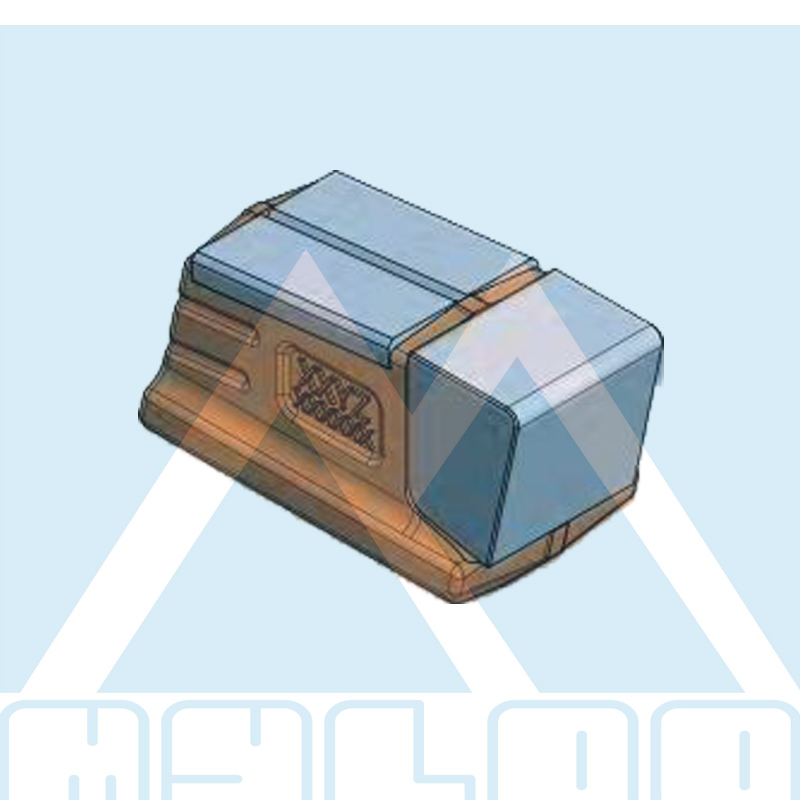

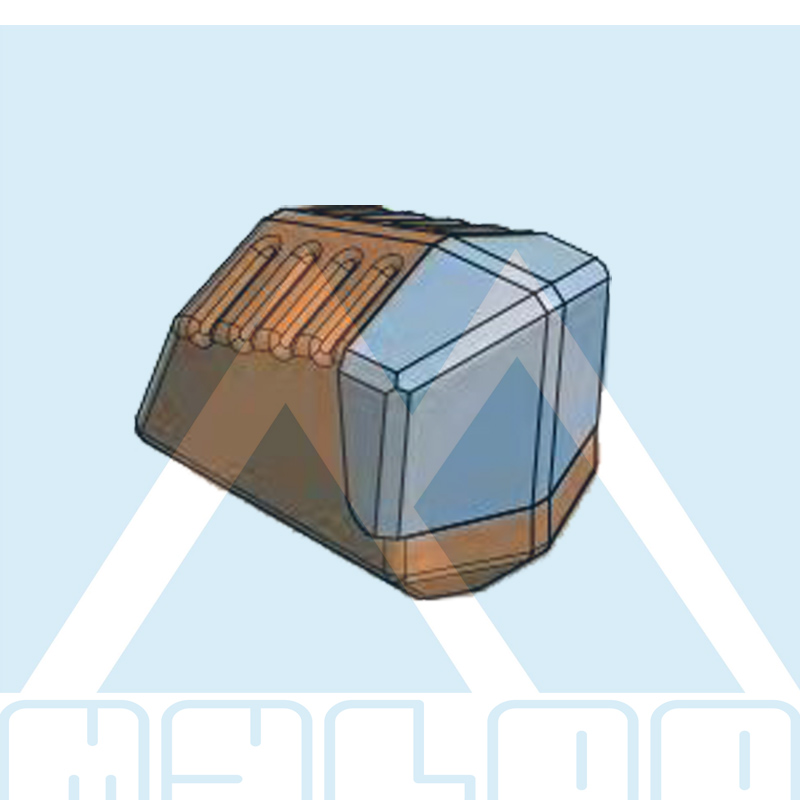

Carbide Roll Crusher Welding Teeth:
Our tungsten carbide weld-on teeth for roll crushers are used to crush various minerals, which ensure long wear life and consistent quality. This means lower operating costs, less down time for machine maintenance, and a more predictable wear life. close attention is paid to quality control ensuring our teeth fit properly. Our replacement roll crusher welding teeth are guaranteed to meet or exceed the OEM specification for fit, material grade and performance unless otherwise stated. Our range includes teeth to suit the leading brands, including Metso, Weir and more.
Carbide Grade:
Grade: MT6Z |
Hardness: 90.5 - 91.0HRA |
S.T.R.: 1800 - 2000Mpa |
Density: 14.90g/cm3 |
Grain size: 1.0 - 1.6μm |
Products Application:

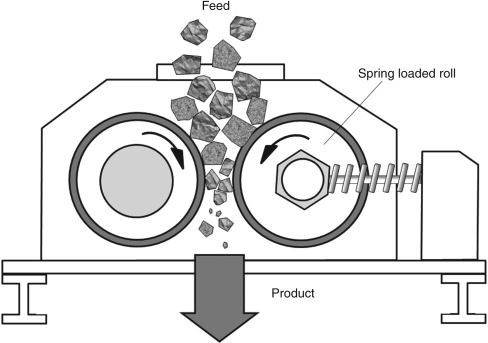

Our teeth suitable for roll sizer crushers include: bauxite, cement clinker, chalk, cinders, clay, coal, glass, gypsum, limestone, burnt lime, rock salt, sandstone, shale, sulfur ore, sea shells, and sewer sludge clinker. Single Roll crushers, sometimes called lump breakers, can also be used for breaking frozen or agglomerated materials.
Why Our Products :
1. Coarse enough of grain size to be favorable for welding.
2. Lower cobalt without broken, longer wear-resistance.
3. Much strict control on scrap carbide to ensure stable quality of carbide powder.
All is from carbide rods with grain size 0.8-1.0um, like endmill, reamer, drills. Other carbide manufacturers usually use carbide drill bits or anvil with grain size 1.2/1.6/2.0 mixed.
4. Our special creative sintering-process to ensure uniform grain size 2.4um.
Other carbide manufacturers usually sinter it by Intermediate Frequency Furnace with temperature 1500℃, that the heat-difference can be 70-80℃ caused non-uniform grain size. We use Vacuum Sintering Furnace with “secret” temperature without heat-difference to ensure uniform grain size.
5. With more than 10 years experiences on tungsten carbide production and the final application of HPGR crusher, we can design and recommend suitable carbide grades for your operating condition.
Our Packaging Way :
Why Us?
Our Complete Structure of Industrial Chain：For the carbide finished wear parts, the quality core is focus on tungsten carbide production technology and brazed bond.
Product Focus: Focus carbide wear parts for crusher & road maintenance.
End User Maintenance: Over 10 years experiences from end users strength us more confident in this field
Annual Capacity: Carbide wear parts - 500Tons
Operation Principle: We are your factory, you are our future.
